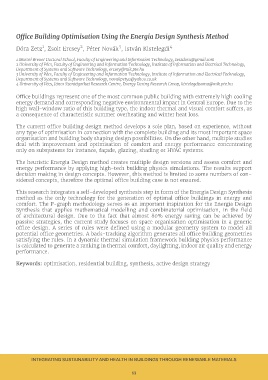

ice Building Optimisation Using the Energia Design Synthesis Method
Dóra Zetz1, Zsolt Ercsey2, Péter Novák3, István Kistelegdi4
1 Marcel Breuer Doctoral School, Faculty of Engineering and Information Technology, zetzdora@gmail.com
2 University of Pécs, Faculty of Engineering and Information Technology, Institute of Information and Electrical Technology,
Department of Systems and Software Technology, ercsey@mik.pte.hu
3 University of Pécs, Faculty of Engineering and Information Technology, Institute of Information and Electrical Technology,
Department of Systems and Software Technology, novakpetya@yahoo.co.uk
4 University of Pécs, János Szentágothai Research Centre, Energy Desing Research Group, kistelegdisoma@mik.pte.hu
Office buildings represent one of the most common public building with extremely high cooling
energy demand and corresponding negative environmental impact in Central Europe. Due to the
high wall-window ratio of this building type, the indoor thermal and visual comfort suffers, as
a consequence of characteristic summer overheating and winter heat loss.
The current office building design method develops a sole plan, based on experience, without
any type of optimisation in connection with the complete building and its most important space
organisation and building body shaping design possibilities. On the other hand, multiple studies
deal with improvement and optimisation of comfort and energy performance concentrating
only on subsystems for instance, façade, glazing, shading or HVAC systems.
The heuristic Energia Design method creates multiple design versions and assess comfort and
energy performance by applying high-tech building physics simulations. The results support
decision making in design concepts. However, this method is limited to some numbers of con-
sidered concepts, therefore the optimal office building case is not ensured.
This research integrates a self-developed synthesis step in form of the Energia Design Synthesis
method as the only technology for the generation of optimal office buildings in energy and
comfort. The P-graph methodology serves as an important inspiration for the Energia Design
Synthesis that applies mathematical modelling and combinatorial optimisation, in the field
of architectural design. Due to the fact that almost 80% energy saving can be achieved by
passive strategies, the current study focuses on space organisation optimisation in a generic
office design. A series of rules were defined using a modular geometry system to model all
potential office geometries. A back-tracking algorithm generates all office building geometries
satisfying the rules. In a dynamic thermal simulation framework building physics performance
is calculated to generate a ranking in thermal comfort, daylighting, indoor air quality and energy
performance.
Keywords: optimisation, residential building, synthesis, active design strategy
